Cibes A5000
What is Cibes A5000 Platform Lift?
Cibes A5000 is a great way to add comfort, beauty and real estate value to your home.

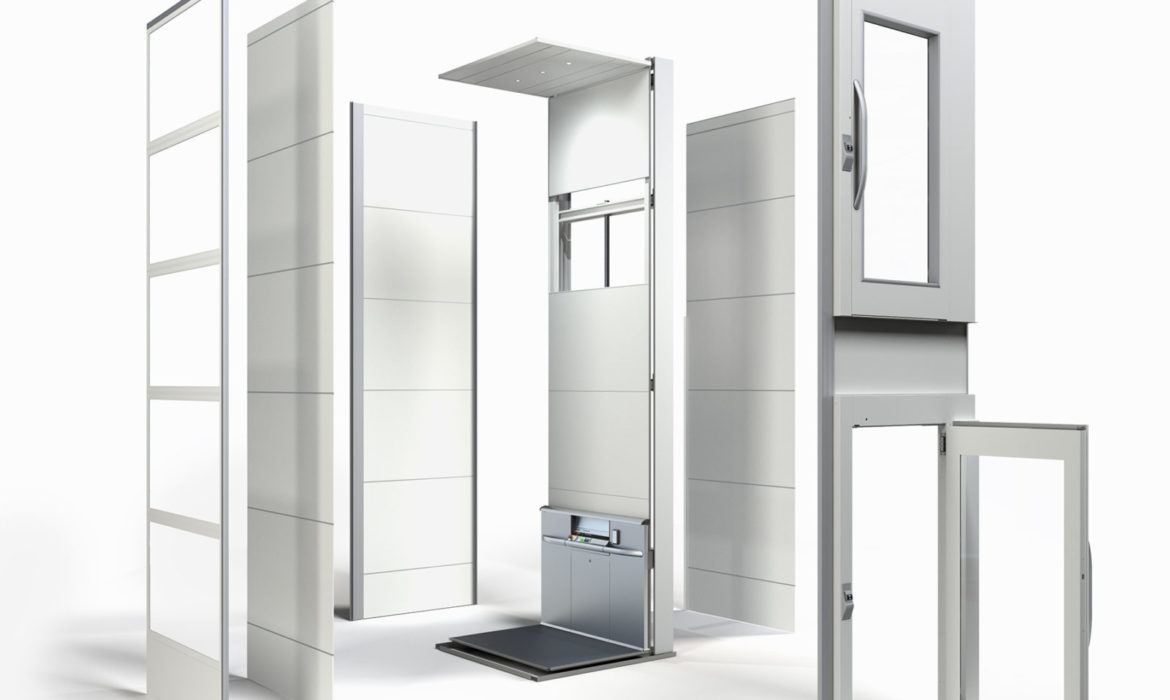

The lift is delivered in ready-made modules with everything you need for installation, including the lift shaft.
Our ready-made lift concept speeds up the installation and minimizes the impact on your home.
Technical Data of Cibes A5000
| Model | Cibes A5000 |
|---|---|
| Location | Indoor / Outdoor |
| Rated load | 400 kg |
| Travel height | Max 13 m |
| Min. headroom at top landing | 2250 mm |
| Pit depth without ramp | 50 mm |
| Platform sizes (w x d) | 800×1217/900×1467/1000×1267/1100×1367/ 1000×1467/1100×1467/1100×1597/ 1000×1967 mm |
| Prefabricated shaft size (w x d) | 1160×1259/1260×1509/1360×1309/1460×1409/ 1360×1509/1460×1509/1460×1639/1360×2009 mm |
| Cut out sizes (w x d) | 1200×1380/1300×1630/1400×1630/1500×1530/ 1400×1630/1500×1630/1500×1760/1400×2130 mm |
| Max. number of stops | 6 |
| Travel speed (m/s) | Max 0.15 m/s |
| Standard shaft | Steel panels off white RAL 9016 |
| Door configuration | Single-entry, open through, adjacent |
| Doors | Swing doors or gates |
| Clear door opening sizes (w x h)* | 700/750/800/900/1000×2000 mm |
| Clear door opening sizes, gate (w x h)* | 700/750/800/900/1000×1100 mm |
| Drive system | Screw-driven with safety nut |
| Control system | Micro computer based system |
| Power supply | 3×400/3×230/1×230 VAC |
| Rated motor power | 2.2 kW |
| Machine room | Integrated |
| Complies with | EN 81-41 / MD 2006/42/EC |
| Manufactured in | Sweden |
